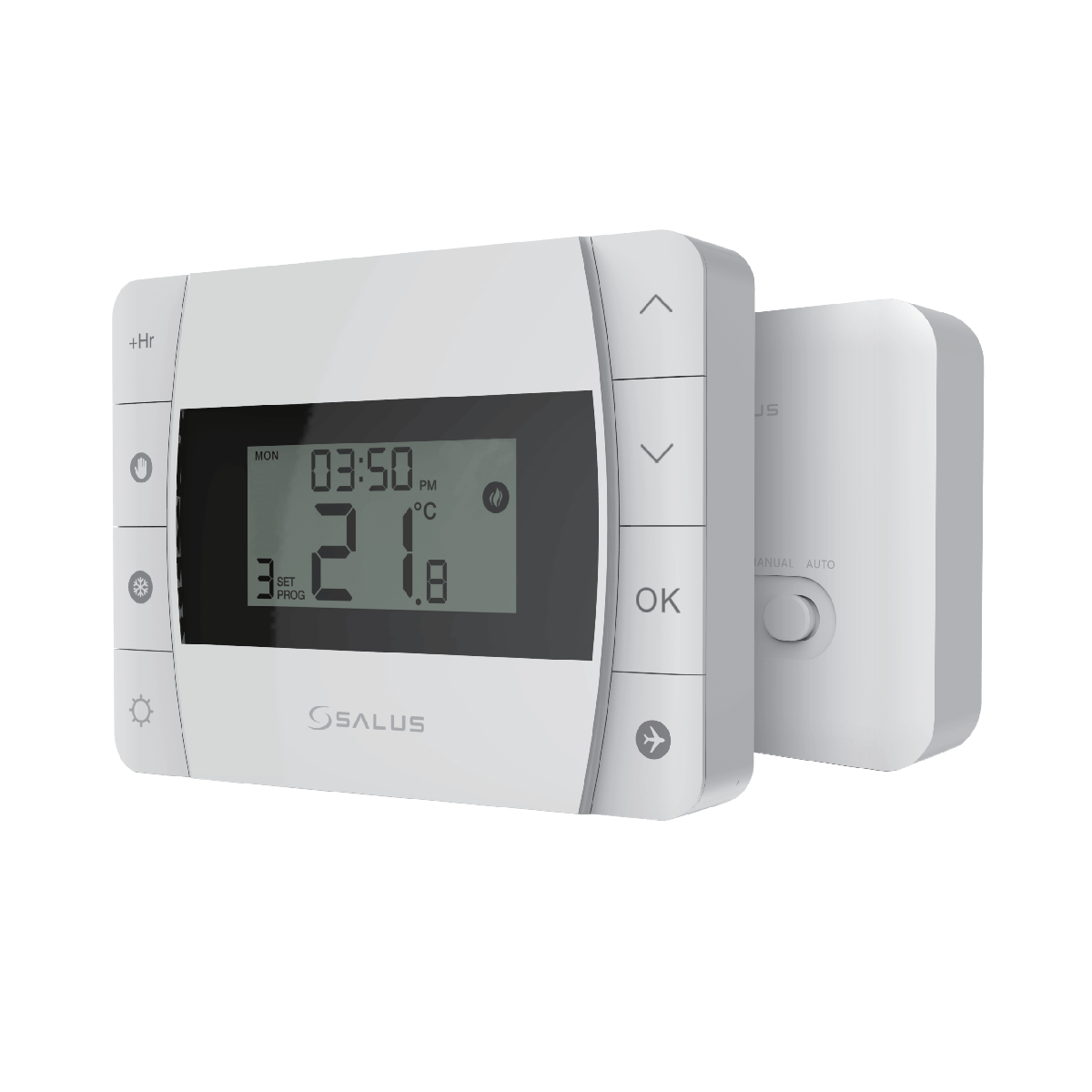

DT500RF Wireless programmable thermostat

Programmable time and temperature scheduling.

Manual mode available.

Holiday mode available. In this mode, the "frost protection" temperature is maintained for a specific number of days.

Product type	Thermostat
Mounting type	Wall or desk
Power supply type	Battery
Suitable for underfloor heating	No
Controlled via internet	No
Frost Protection	Yes
Frequency	868MHz
Manual override	Yes
Temperature control algorithm	ITLC
Output voltage	Volt free
ErP (efficiency class)	IV
Size (mm)	120 x 90 x 29
Temperature range	5 – 35°C
Battery type	2 x AA batteries
Voltage	230V
Maximum amperage	16 (5) A
Quick installation / connection	Yes
Daily / Monday - Sunday programming	Yes
SLEEP mode	Yes
Holiday Mode	Yes
Warranty	5 years
Support period end date	2030-12-31
Support period	5 years

QUICK GUIDE

Boiler Plus Compliant

Boiler Plus is a set of standards meant to improve the way people use energy in their homes and to maximise energy efficiency.

Our Boiler Plus range provides thermostats with onboard load compensation and a range of connected thermostats with optimisation and automation.

DT500RF Wireless programmable thermostat	RT510RF+ Wireless programmable thermostat
Product type Thermostat	Product type Thermostat
Mounting type Wall or desk	Mounting type Wall or desk
Power supply type Battery	Power supply type Battery
Suitable for underfloor heating No	Suitable for underfloor heating No
Controlled via internet No	Controlled via internet No
Frost Protection Yes	Frost Protection Yes
Frequency 868MHz	Frequency 868MHz
Manual override Yes	Manual override Yes
Temperature control algorithm ITLC	Temperature control algorithm ITLC
Output voltage Volt free	Output voltage Volt free
ErP (efficiency class) IV	-
Size (mm) 120 x 90 x 29	Size (mm) 120 x 96 x 27
Temperature range 5 – 35°C	Temperature range 5 – 35°C
Battery type 2 x AA batteries	Battery type 2 x AA batteries
Voltage 230V	Voltage 230V
Maximum amperage 16 (5) A	Maximum amperage 16A
Quick installation / connection Yes	Quick installation / connection Yes
Daily / Monday - Sunday programming Yes	-
SLEEP mode Yes	SLEEP mode Yes
Holiday Mode Yes	-
Warranty 5 years	Warranty 5 years
Support period end date 2030-12-31	Support period end date 2030-12-31
Support period 5 years	Support period 5 years
-	Cooling mode function Yes
-	Adjustable hysteresis 0.25
-	LCD Yes
-	Display temperature resolution 0,5/0,1
-	Communication range (m) 30
-	Temporary overwriting Yes
-	Holiday option Yes
-	Works with NO and NC actuators Yes
-	Pre-paired wireless communication Yes
-	RF Test function Yes
-	Boiler Plus Compatible Yes
