INV-WF-10000W-3P Three-Phase Inverter

Quick and easy installation –manuals available in English and dedicated technical support for commissioning.

Monitor the inverter’s performance directly from the SALUS Premium Lite app for complete and efficient control of the photovoltaic system.

Advanced protection against islanding, insulation resistance detection, residual current monitoring, and protection against overcurrent, short circuit, and overvoltage, for safe and reliable operation.

Top certifications – compliant with international and European standards IEC, VDE, EN, and local regulations

Technical Specifications

Photovoltaic panels	Details
Maximum nominal power	15kW
MPPT Trackers	2
Number of inputs per MPPT	1 + 1
Maximum current per MPPT tracker	18 A

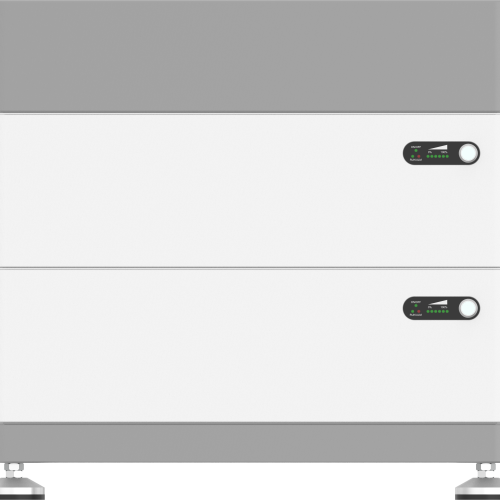

Batteries	Details
Voltage range	125–600 V
Max. charging current	50 A
Nominal charging current	40 A
Grid/Home Input/Output	Details
Number of phases	3
Nominal output power	10kW
Output voltage	230 VAC
General	Details
Protection class	AC output short circuit current protection, All-pole sensitive residual current monitoring unit, Anti-islanding protection, DC-side disconnection device, IEC 62109-1, Output Over Current Protection, Output Over Voltage Protection, PV string reverse polarity protection
Size (mm)	566 / 596 / 220
Weight	32Kg
Storage conditions	–25°C to 60°C
Warranty	5 years
Support period	5 years
Support period end date	2027-12-31
