Description

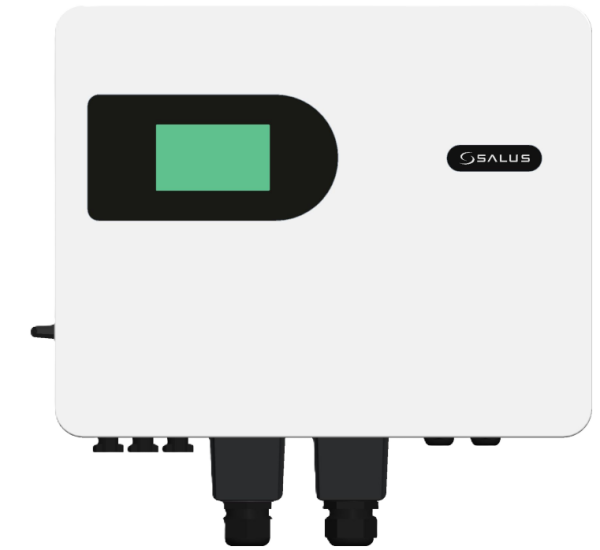

INV-WF-8000W-1P Single Phase Inverter
Quick and easy installation –manuals available in English and dedicated technical support for commissioning.
Monitor the inverter’s performance directly from the SALUS Premium Lite app for complete and efficient control of the photovoltaic system.
Advanced protection against islanding, insulation resistance detection, residual current monitoring, and protection against overcurrent, short circuit, and overvoltage, for safe and reliable operation.
Top certifications – compliant with international and European standards IEC, VDE, EN, and local regulations
Technical Specifications
| Photovoltaic panels | Details |
|---|---|
| Maximum nominal power | 12kW |
| MPPT Trackers | 2 |
| Number of inputs per MPPT | 2+1 |
| Maximum current per MPPT tracker | 16A |
| Batteries | Details |
| Voltage range | 40-58V |
| Max. charging current | 160 A |
| Grid/Home Input/Output | Details |
| Number of phases | 1 |
| Nominal output power | 8kW |
| Output voltage | 230 VAC |
| General | Details |
| Protection class | Back-up Output Short Protection, Insulation Resistor Detection, Island Protection, Output Over Current Protection, Output Over Voltage Protection, Output Under Voltage Protection, Residual Current Monitoring Unit |
| Size (mm) | 484.5 / 467 / 200 |
| Weight | 22Kg |
| Storage conditions | –25°C to 60°C |
| Warranty | 10 years or 4000 cycles |
| Support period | 5 years |
| Support period end date | 2030-12-31 |
Quick Guide
Part of of the SALUS Solar System...
INV-WF-10000W-3P Triple Phase Inverter
Low Voltage Battery BAT-INV-5000W-1P
High Voltage Battery BAT-INV-5000W-3P

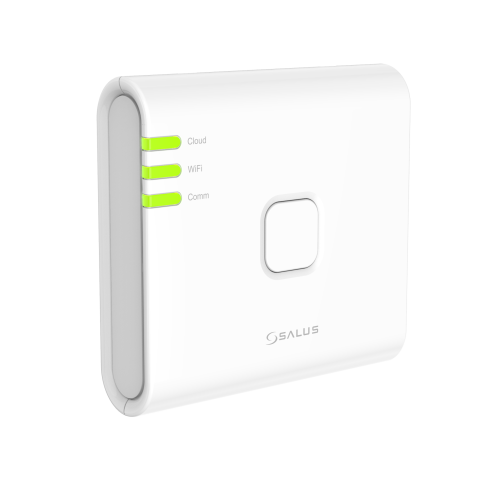

IW10 WiFi Adapter module for Inverter
