INV-WF-10000W-3P Three-Phase Inverter

Quick and easy installation –manuals available in English and dedicated technical support for commissioning.

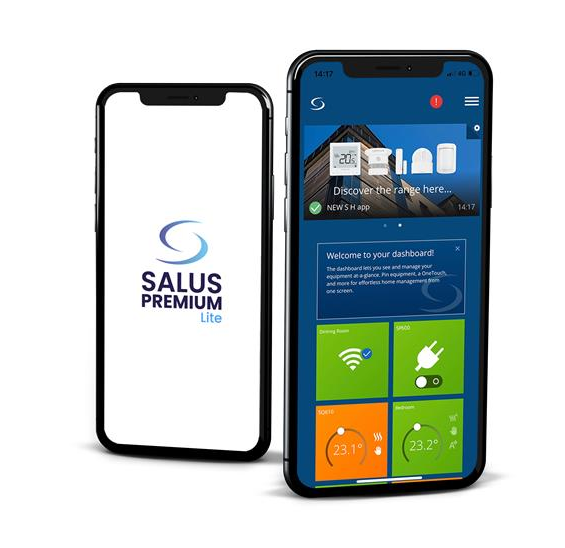

Monitor the inverter’s performance directly from the SALUS Premium Lite app for complete and efficient control of the photovoltaic system.

International standardization – complies with EN 62109-1/-2 safety standards and IEC 61000-6-1/-2/-3/-4, IEC 61000-3-11/-3-12 for electromagnetic compatibility, ensuring safe and reliable performance in any environment.

Class I protection according to IEC 62109-1 and AC surge: III, DC: II, for safe operation.

TECHNICAL SPECIFICATIONS

Available in	Denmark, France, Germany, Romania, UK
Maximum nominal power	15kW
MPPT Trackers	2
Number of inputs per MPPT	1 + 1
Maximum current per MPPT tracker	18 A
Batteries	Details
Voltage range	125–600 V
Max. charging current	50 A
Nominal charging current	40 A
Grid/Home Input/Output	Details
Number of phases	3
Nominal output power	10kW
Output voltage	230V
General	Details
Protection class	AC output short circuit current protection, All-pole sensitive residual current monitoring unit, Anti-islanding protection, DC-side disconnection device, IEC 62109-1, Output Over Current Protection, Output Over Voltage Protection, PV string reverse polarity protection
Size (mm)	566 / 596 / 220
Weight	32Kg
Storage conditions	–25°C to 60°C
Warranty	5 years
