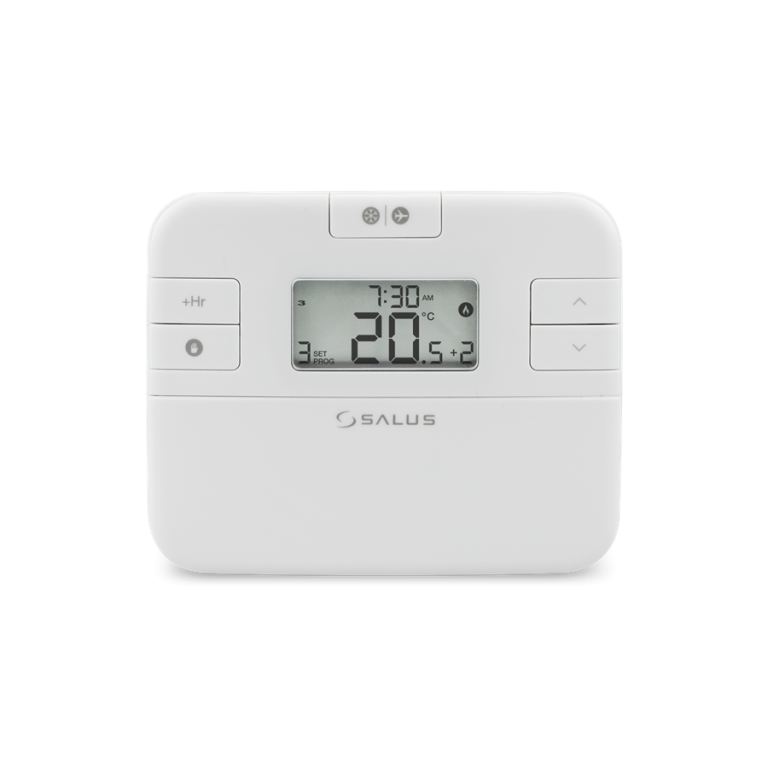

RT510+ Wired, electronic thermostat – programmable

The RT510+ thermostat is a wired programmable controller designed for efficient and precise heating management. Connected directly to the boiler, it activates the heat source via contact closure while using advanced ITLC (Internal Temperature Load Compensation) technology to optimise performance. Users can operate the system through preset schedules or manual temperature settings, ensuring improved comfort, energy efficiency, and compliance with modern Boiler Plus standards.

Technical Specifications

[untranslated] Available in

France, Germany, Netherlands

[untranslated] Product Type

Thermostat

[untranslated] Mounting Type

Wall

[untranslated] Power Supply

2 x AA batteries

Suitable for underfloor heating

Yes

[untranslated] Output Voltage

Volt free

Frost Protection

Yes

Manual override

Yes

Temperature control algorithm

ITLC

Warranty

5 years

ErP (efficiency class)

IV

Dimensions (mm)

120x98x30

Temperature range

5°C-35°C

LCD

Yes

Display temperature resolution

0,5 / 0,1

Battery type

2 x AA batteries

Maximum amperage

3A

Predefined programs

Yes

Customizable programs

Yes

Daily / Monday - Sunday programming

Yes

Temporary overwriting

Yes

Record consumption history

Yes

Terminals

COM /NO

COMPARE TO
CHOOSE

RT510+ Wired, electronic thermostat - programmable
091FLV2 Wired, electronic thermostat - programmable
[untranslated] Available in
France, Germany, Netherlands
[untranslated] Available in
Bosnia and Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Greece, Italy, Latvia, Lithuania, Macedonia, Poland, Romania, Serbia, Slovakia, Slovenia, Spain, Ukraine
[untranslated] Product Type
Thermostat
[untranslated] Product Type
Thermostat
[untranslated] Mounting Type
Wall
[untranslated] Mounting Type
Wall
[untranslated] Power Supply
2 x AA batteries
[untranslated] Power Supply
2 x AA batteries
Suitable for underfloor heating
Yes
-
[untranslated] Output Voltage
Volt free
[untranslated] Output Voltage
Volt free
Frost Protection
Yes
Frost Protection
Yes
Manual override
Yes
-
Temperature control algorithm
ITLC
-
Warranty
5 years
Warranty
5 years
ErP (efficiency class)
IV
ErP (efficiency class)
I
Dimensions (mm)
120x98x30
Dimensions (mm)
154x80x30
Temperature range
5°C-35°C
Temperature range
5°C – 30°C
LCD
Yes
LCD
Yes
Display temperature resolution
0,5 / 0,1
Display temperature resolution
0.2
Battery type
2 x AA batteries
-
Maximum amperage
3A
Maximum amperage
5(3)A
Predefined programs
Yes
Predefined programs
Yes
Customizable programs
Yes
Customizable programs
Yes
Daily / Monday - Sunday programming
Yes
-
Temporary overwriting
Yes
-
Record consumption history
Yes
-
Terminals
COM /NO
-
- [untranslated] Suitable for radiator heating
Yes
- [untranslated] Suitable for electric heating
Yes
- Cooling mode function
Yes
- Adjustable hysteresis
Yes
- Works with NO or NC actuators
Yes
- Night mode
Yes
