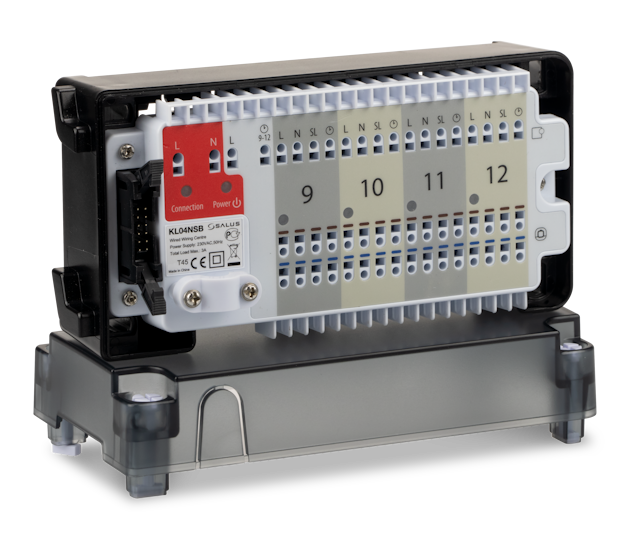

KL04NSB Wiring centre extension for KL08NSB

This module expands the KL08NSB wiring center, adding 4 heating zones and increasing the combined set’s functionality to 12 individually controlled heating zones.

Technical Specifications

Availabe in	Bosnia and Herzegovina, Croatia, Czech Republic, Estonia, Greece, Italy, Latvia, Lithuania, Poland, Russia, Serbia, Slovakia, Slovenia, Spain, Ukraine
Product type	Wiring Centre
Mounting type	Flush mounting & Din Rail
Power supply type	230V
Suitable for underfloor heating	Yes
Output voltage	230V
Warranty	5 years
Size (mm)	170x85x67
Voltage	230V
Maximum amperage	5A
Input voltage	230V
Quick installation / connection	L/N
Can connect up to "n" actuators per zone	4
Number of room termostats	4
Number of Actuators	16
Simplifies wiring	Yes
Terminals	L/N

RESOURCES

COMPARE TO
CHOOSE

KL04NSB Wiring centre extension for KL08NSB	KL04NSB24V Wiring centre extension for KL08NSB
Availabe in Bosnia and Herzegovina, Croatia, Czech Republic, Estonia, Greece, Italy, Latvia, Lithuania, Poland, Russia, Serbia, Slovakia, Slovenia, Spain, Ukraine	Availabe in Bosnia and Herzegovina, Bulgaria, Croatia, Czech Republic, Estonia, Greece, Italy, Latvia, Lithuania, Poland, Russia, Serbia, Slovakia, Slovenia, Spain, Ukraine
Product type Wiring Centre	Product type Wiring Centre
Mounting type Flush mounting & Din Rail	Mounting type Flush mounting & Din Rail
Power supply type 230V	Power supply type 24V
Suitable for underfloor heating Yes	Suitable for underfloor heating Yes
Output voltage 230V	Output voltage 24V
Warranty 5 years	Warranty 5 years
Size (mm) 170x85x67	Size (mm) 170x85x67
Voltage 230V	Voltage 24V
Maximum amperage 5A	Maximum amperage 5A
Input voltage 230V	Input voltage 24V
Quick installation / connection L/N	Quick installation / connection L/N
Can connect up to "n" actuators per zone 4	Can connect up to "n" actuators per zone 4
Number of room termostats 4	Number of room termostats 4
Number of Actuators 16	Number of Actuators 16
Simplifies wiring Yes	Simplifies wiring Yes
Terminals L/N	Terminals L/N
-	Works with NO and NC actuators Yes
