Description

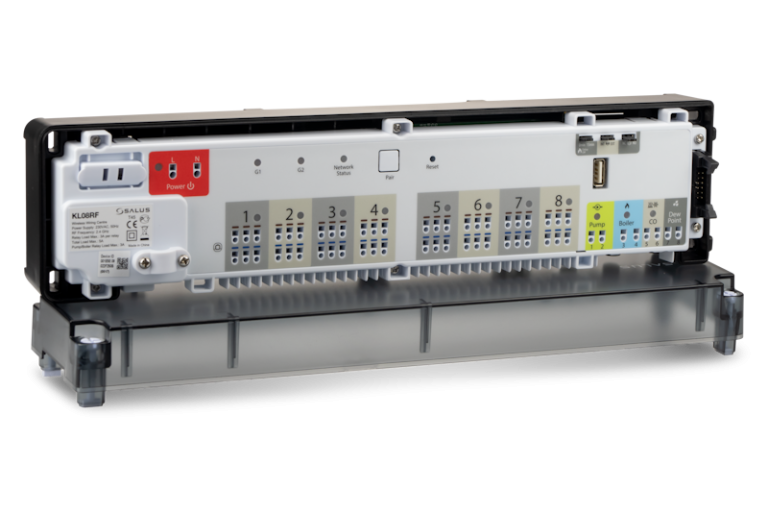

KL08RF Wireless wiring centre for 8-zone
The KL08RF has 8 control zones, each with connections for up to 3 heating zones (actuators).
TECHNICAL SPECIFICATIONS
| [untranslated] Available in | Bosnia and Herzegovina, Bulgaria, Croatia, Czech Republic, Denmark, Estonia, France, Germany, Greece, Italy, Latvia, Lithuania, Macedonia, Netherlands, Poland, Romania, Serbia, Slovakia, Slovenia, Spain, UK, Ukraine |
|---|---|
| [untranslated] Product Type | Wiring Centre |
| [untranslated] Mounting Type | Flush mounting & Din Rail |
| [untranslated] Power Supply | 230V |
| Suitable for underfloor heating | Yes |
| Controlled via internet | Yes |
| [untranslated] Output Voltage | 230V |
| Frequency | 2.4 GHz |
| Warranty | 5 years |
| Zigbee Technology | Yes |
| Dimensions (mm) | 355x85x67 |
| Voltage | 230V |
| Maximum amperage | 5A |
| Communication range (m) | 30 |
| [untranslated] Input Voltage | 230V |
| Extends the range of communication | Yes |
| Quick installation / connection | L/N |
| Works with NO or NC actuators | Yes |
| [untranslated] Can connect up to "n" actuators per zone | 3 |
| [untranslated] Number of room thermostats | 8 |
| Number of Actuators | 24 |
| [untranslated] Protecție pompă și boiler | Yes |
| Selectable delay-on for pump and boiler | Yes |
| [untranslated] Crește acoperirea semnalului | Yes |
| Simplifies wiring | Yes |
| Terminals | L/N/Pump/Boiler/CO/Dewpoint |
