EV CHARGER

High-power charging with the market's thinnest design for minimal obtrusion.

Equipped with comprehensive safety features, including PEN fault protection, overcurrent, and surge protection, ensuring reliable and secure charging.

Control and monitor your charger from anywhere with our intuitive mobile app.

Quick and simple setup with included wall mount, compatible with single-phase and three-phase power supplies, perfect for residential use.

Design tailored to meet the needs of all countries, while ensuring full legal compliance.

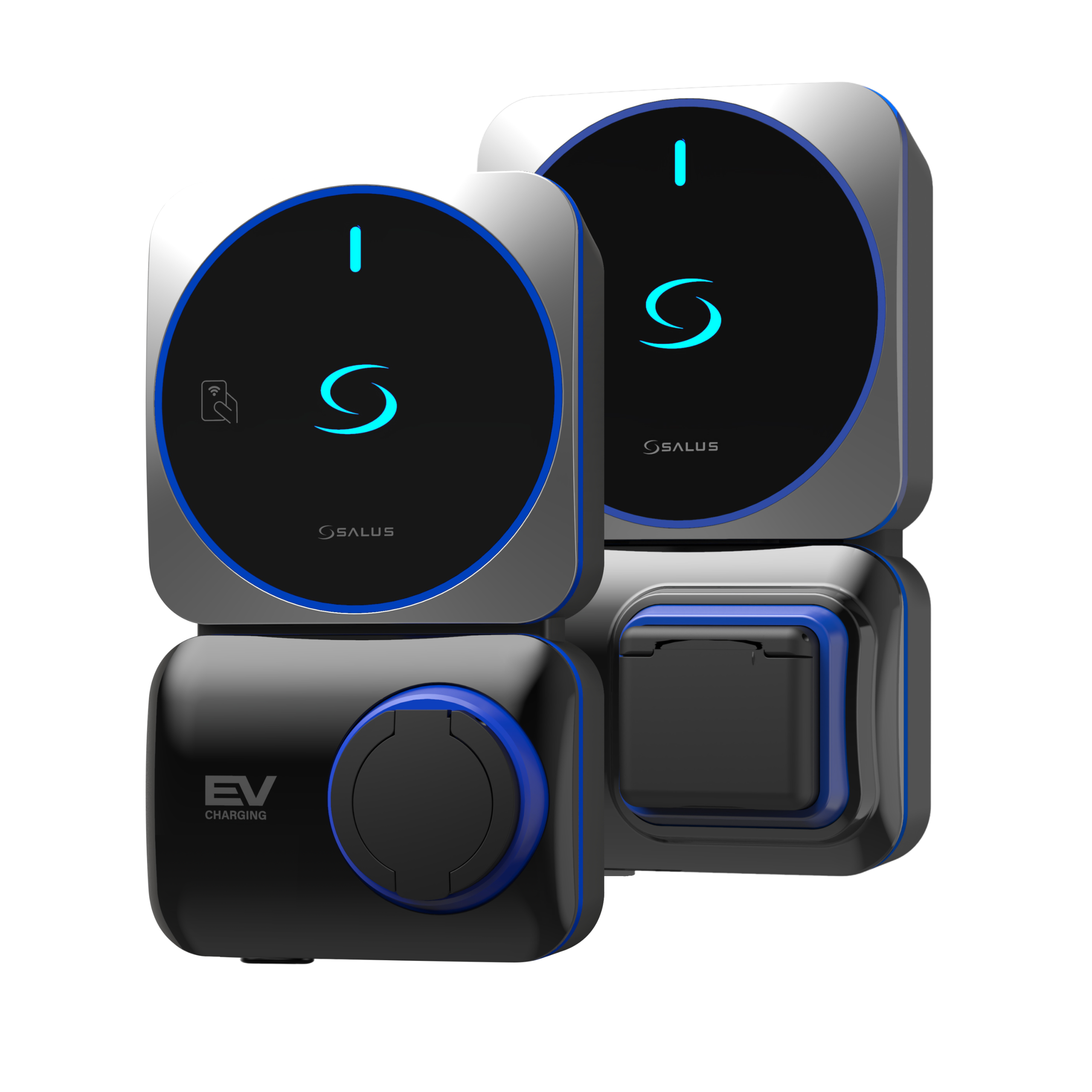

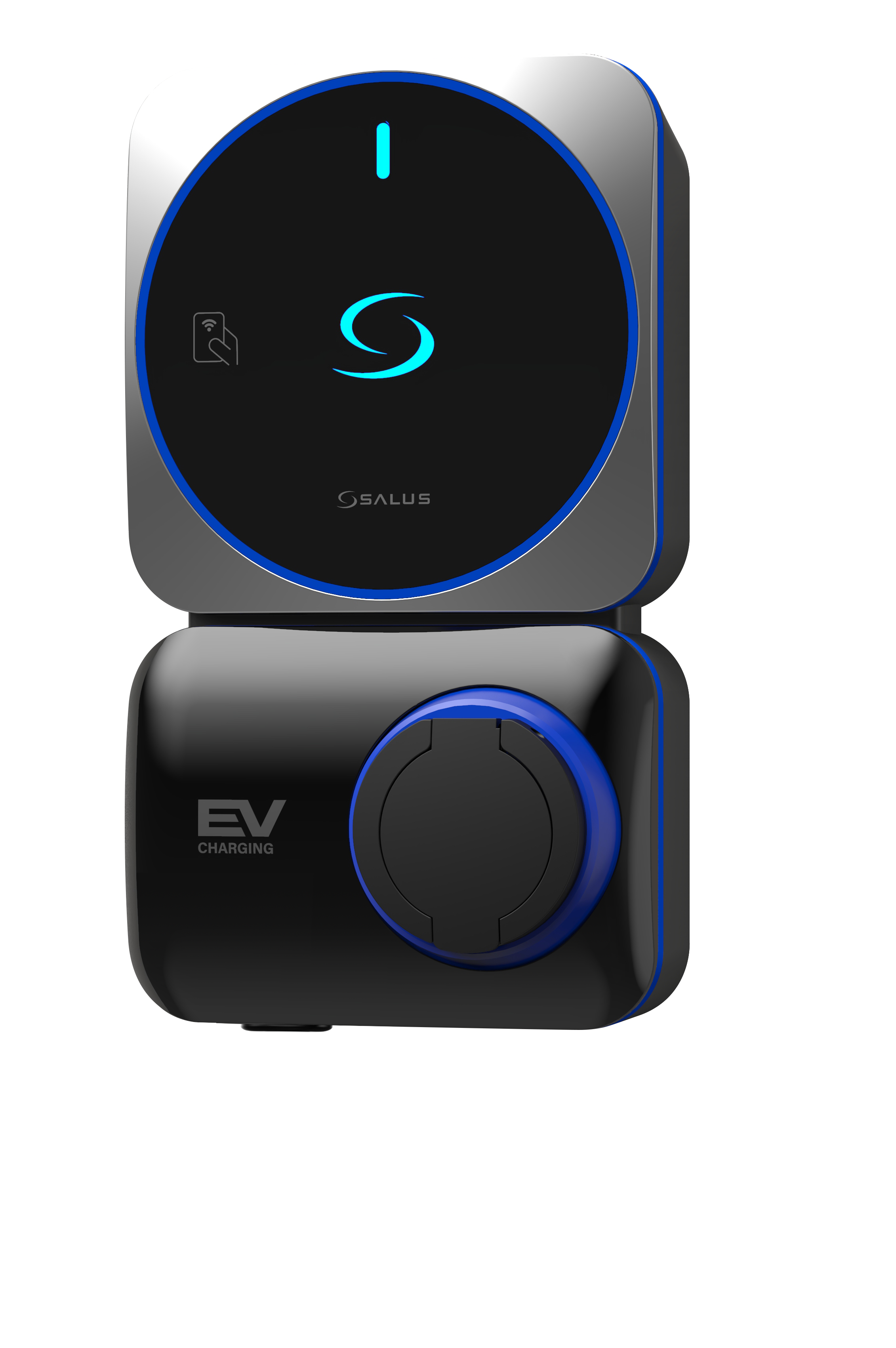

The Salus EV Charger Mode-3 AC series offers charging power from 7kW to 11kW via a Type-2 socket for your Electric Vehicles. Its slim design makes it suitable for both indoor and outdoor environments, ideal for residential use.

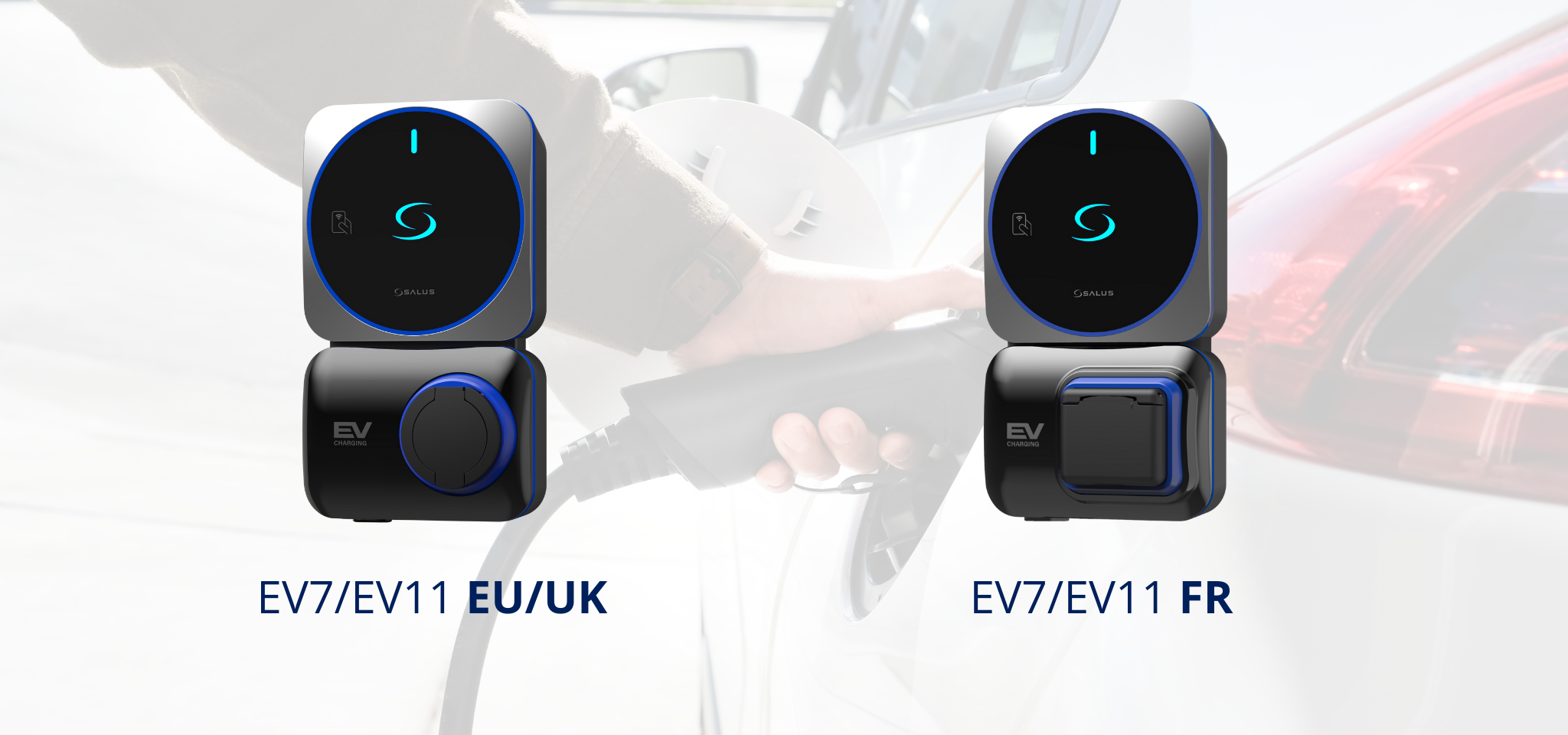

MODEL NUMBER

EV7EU : 7kW (1-phase) socket type
EV11EU : 11kW (3-phase) socket type

EV7UK : 7kW (1-phase) socket type (UK version)

EV7FR : 7kW (1-phase) socket type (FR version)
EV11FR : 11kW (3-phase) socket type (FR version)

Technical Specifications

Available in	Denmark, France, Germany, Netherlands, Poland, Romania, UK
Product type	EV Charger
Mounting type	Wall
Power supply type	230V
Connectivity	IEEE 802.11bgn Wi-Fi (2.4GHz)
Charging Current & Power	32A / 7kW
Charging Mode	Mode 3
Cable Section	Up to 10mm2
Cable Entry	Bottom and rear side
LED	Yes
NFC reader	Mifare (13.56MHz), ISO14443-A
Communication	Mobile App operation
6mA DC residual current detection	Yes
Anti-welding protection	Yes
Over current protection	Yes
Over/under voltage protection	Yes
Over temperature protection	Yes
Surge protection	Yes
PEN fault protection	EV7UK only
Temperature range	-25°C to 45°C
Size (mm)	400 x 23 x 114
Warranty	5 years
