SQ610RF Wireless slimline internet controlled thermostat

With a stylish design, this is the slimmest thermostat on the market at only 10mm thick.
ITLC. Advanced algorithm for load compensation.

Intuitive menu that allows you to easily control temperature.

Advanced temperature control.

Advanced radio frequency communication via ZigBee.

TECHNICAL SPECIFICATIONS

Controlled via internet

Yes

Frequency

2.4 GHz

Compatible with floor sensor

Yes

Temperature control algorithm

ITLC

ErP (efficiency class)

IV

Valve protection

Yes

Adjustable hysteresis

0.25°C – 0.5°C

Temperature range

5 – 35°C

Optimisation functions

Yes

LCD

Yes

Landlord PIN

Yes

Display temperature resolution

0,5/0,1

Battery type

LI-ION baterie

Communication range (m)

30

Predefined programs

Yes

Customizable programs

Yes

Quick installation / connection

Yes

Service mode

Yes

Daily / Monday - Sunday programming

Yes

Product Type

Termostat

Mounting Type

Wall or desk

Suitable for underfloor heating

Yes

Power Supply

Battery

Warranty

5 years

Cooling mode function

Yes

Dimensions (mm)

86 x 86 x 11

Voltage

3,7V

Maximum amperage

0.5 A

Zigbee Technology

Yes

GUIDES

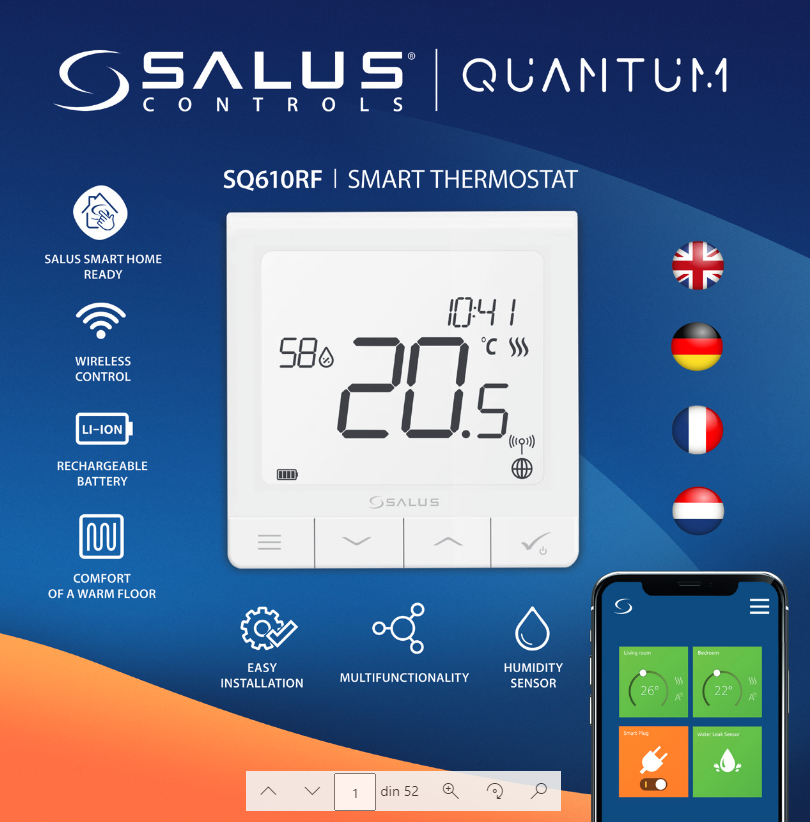

Manual
Manual

Download Download

INSTALLATION

SQ610RF and SQ610 + KL08RF - installation and pairing + CO10RF

ErP V CERTIFIED

This thermostat has a ErP V certification that guarantees its energy consumption is below the agreed limits. The ErP is an EU directive which regulates the market of energy-related products. The ErP certifications are credited to products that are energy and resource efficient.

Wall mounting plate

Self-adhesive mounting tape

Mounting screws

Manual instruction

SQ610RF
Quantum
Thermostat

What's
in the box
